WorkFlo Designer - Wait Condition Node

This node waits for a condition to become true before it allows the process to continue. If the value read from the spreadsheet as defined by the Cell Address matches the True Result field, it will continue. In all other cases, it will wait for the condition to become true.

A spreadsheet value can be changed manually, or it can be updated via a blockchain event as captured by the Listener Node. If a condition becomes true due to the passing of time, it will not continue automatically but would need to be routed manually.

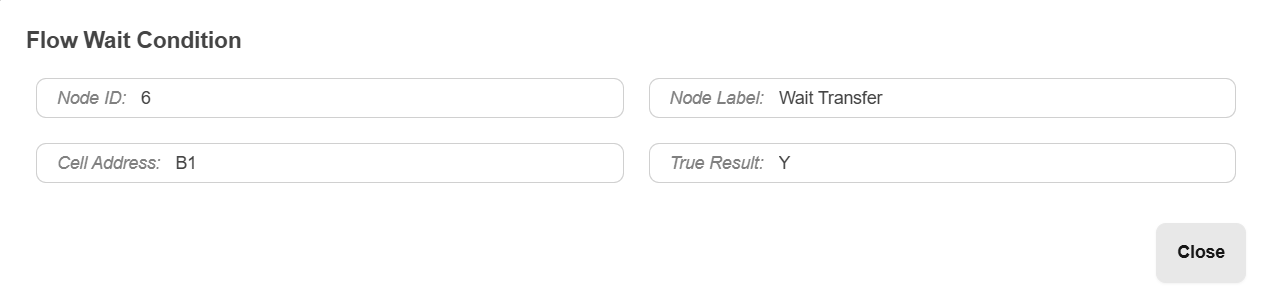

Properties

• Node ID

  Auto-generated node ID. Read only.

• Node Label

  The label of the node to be displayed on the workflow canvas.

• Cell Address

  The cell address in the spreadsheet that contains the value to be evaluated.

• True Result

  The value that will cause the business process to continue.
