WorkFlo Designer - User Input Node

This node is an assignable node that is used to prompt the user for one or more input values. It can be configured to validate the values using a regular expression. If the regular expression is not matched, it will prevent further processing and display a message to the user explaining the validation error. The user-supplied value is configured to be written to a specific cell on the associated spreadsheet.

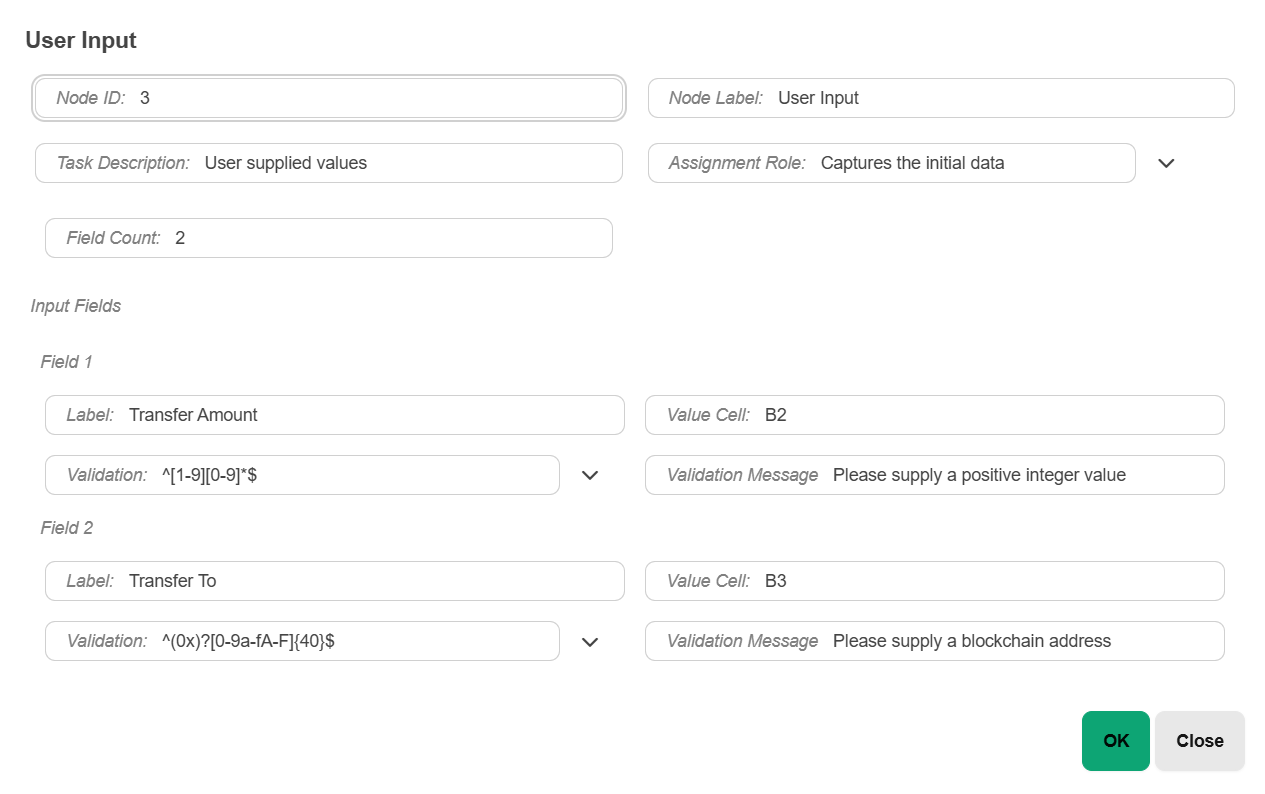

Properties

• Node ID

  Auto-generated node ID. Read only.

• Node Label

  The label of the node to be displayed on the workflow canvas.

• Task Description

  The title of the user assignment.

• Assignment Role

  The role to which this interactive input will be assigned. A role can be selected from the dropdown table.



• Field Count

  The number of values the user needs to supply.

• Input Fields

  A list of field groups will be displayed with the list length defined by the Field Count property. This group of fields is used to define the input field and its behaviour.

  • Field Label

    The label of the input field

  • Value Cell

    The spreadsheet address where the user-supplied value will be written to.

  • Validation

    The regular expression which will be used to validate the user-supplied value. If no expression is provided, the value will not be validated.

  • Validation Message

    The message to be presented to the user if the validation fails.
